50.8MM Stainless Steel 90 Degree Handrail Elbow Connector
50.8MM Stainless Steel 90 Degree Handrail Elbow Connector 50.8MM Stainless Steel 90 Degree Handrail Elbow Connector

loading

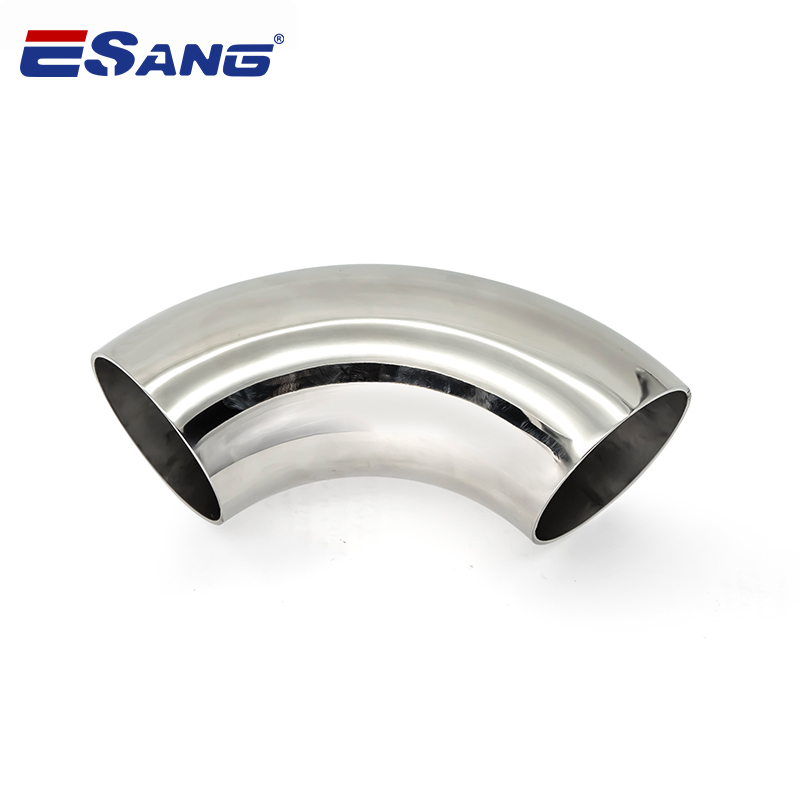

Stainless Steel 90 Degree Handrail Elbow Connector

Our 90-degree stainless steel elbows provide flawless corner connections for 38.1mm, 42.4mm, and 50.8mm tubing systems. Utilizing progressive die stamping and TIG welding, these elbows maintain uniform wall thickness (1.0-3.0mm) with ±0.15mm dimensional tolerance, no burr,ideal for handrails, guardrails, and industrial frameworks.

Material:
AISI304
AISI316
Size:
38.1MM
42.4MM
50.8MM
Surface:
Mirror
Satin
Matt Black
SKU:
Availability:
Quantity:
Inquire Add to Basket
Type
Handrail Elbow
Degree
90 Degree
Material
AISI 201/304/316
Surface Finish
Satin/Mirror
Size
38.1/42.4/50.8mm
Thickness
1.2/1.5mm

90° Stainless Steel Handrail Elbow



Why Architects & Contractors Choose Our Elbows

Seamless Construction: Eliminating weak points and corrosion traps at joints


Corrosion Resistance Engineered: 316 contains 2.1% Mo for chloride-rich environments (coastal/poolside); 304 optimizes cost for indoor/urban use


Safety-Enhanced Design: Radius-matched inner flow line prevents snagging, with burr-free edges certified per ISO 17652 standards

Get Quick Quote

Details

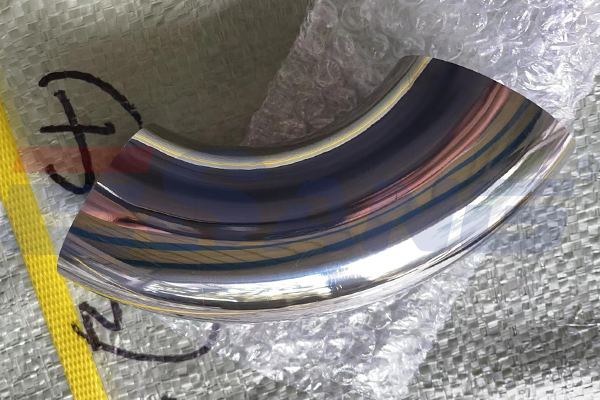

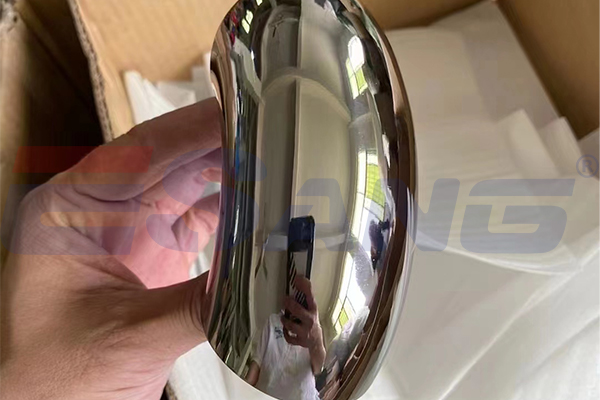

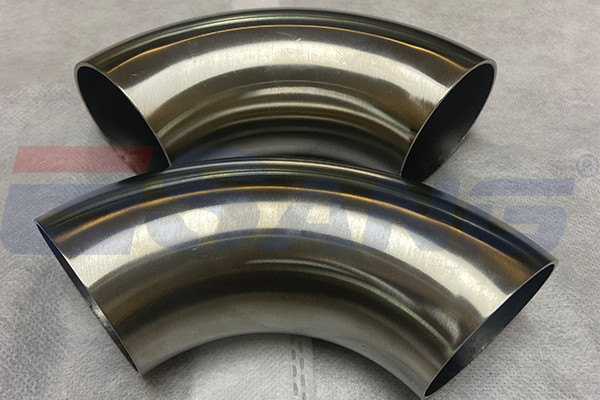

Quality Showed in Detail

Triple-Stage Polishing:

1st Stage: Belt grinding (80-120 grit) removes tool marks.


2nd Stage: Buffing with diamond paste (3-6μm) for uniform luster.


3rd Stage: Electrolytic passivation creates chromium oxide layer, enhancing scratch resistance by 40%

Internal Flow Line Optimization:

CNC-machined radius (R=1.5D) ensures smooth fluid transition, reducing turbulence-induced stress by 30%.


X-ray inspected for wall thickness consistency (±0.2mm tolerance)

Ordering & Logistics

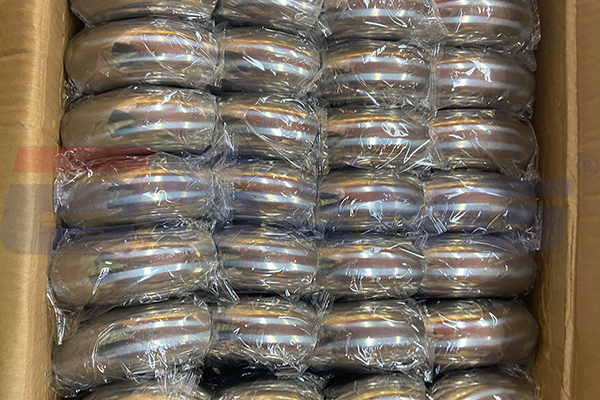

Packaging: Customized packaging or Anti tarnish VCI foam, 50 pcs/carton


MOQ: 100 pcs (mix grades/sizes allowed).


Lead Time: 15 days standard; 30 days for custom engraving.

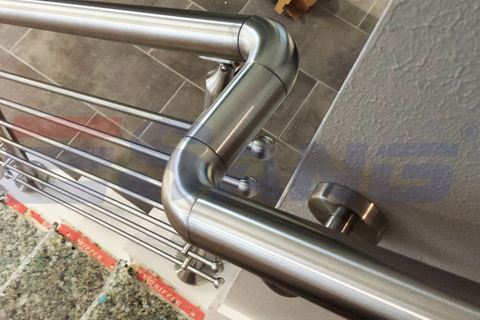

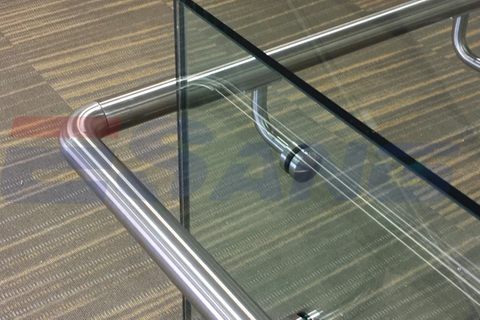

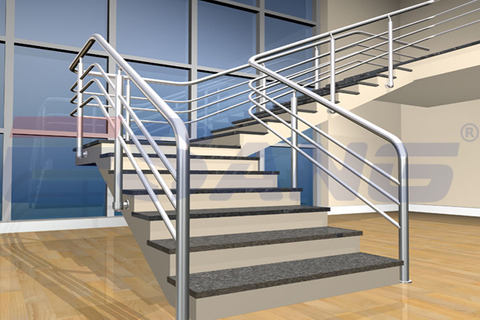

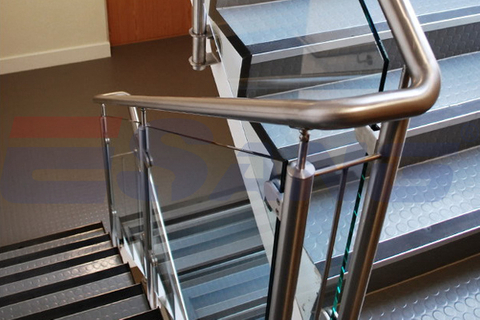

Applications: Where Safety Meets Aesthetics
