Glass Handrail Brackets Stainless Steel
Glass Handrail Brackets Stainless Steel Glass Handrail Brackets Stainless Steel

loading

Glass Handrail Brackets Stainless Steel

Install secure glass railings with precision-engineered glass mounted handrail brackets. These specialized fittings directly clamp onto tempered glass panels (10-17mm thickness) and rigidly support stainless steel handrail pipes (Ø42.4mm, 48.3mm, 50.8mm or custom sizes).

Material:
Size:
Surface:
SKU:
Availability:
Quantity:
Item

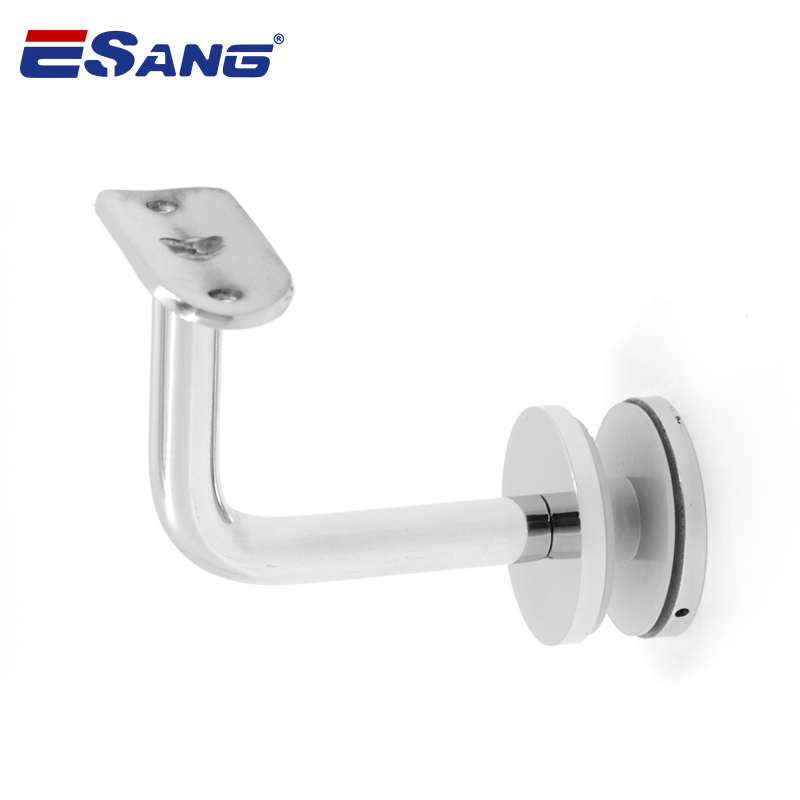

Glass Mounted Handrail Brackets
Material
AISI 304 / AISI 316
Surface Finish
Satin/Mirror/Black/Golden
Size
38.1mm (1.5") / 42.4mm (1.67") / 50.8mm (2")
Glass Thickness
For 10-17mm Glass

Glass Mounted Handrail Brackets for Stainless Steel Pipes

Secure & Minimalist

More details:

1. Compatibility: Fits 10/12/15/19mm tempered glass panels


2. Pipe Support: Compatible with standard 1.5"–2" (42.4–48.3mm) stainless tubing


3. Finish: Brushed/Polished 304 or 316 stainless steel (corrosion-resistant)

Details

Quality Showed in Detail

Dual-Attachment Design:

One end anchors firmly to glass without drilling using adjustable stainless steel clamps; the opposite end bolts to round stainless steel tubing.

Structural Integrity:

Reinforced 304/316 stainless steel construction withstands high load requirements (tested to EN standards) for staircases, balconies, and commercial barriers.

Seamless Integration:

Maintains clean sightlines with concealed hardware – ideal for frameless glass railing systems.



Applications:

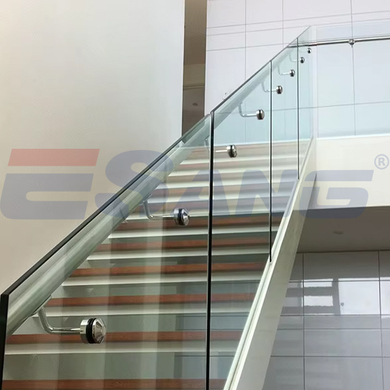

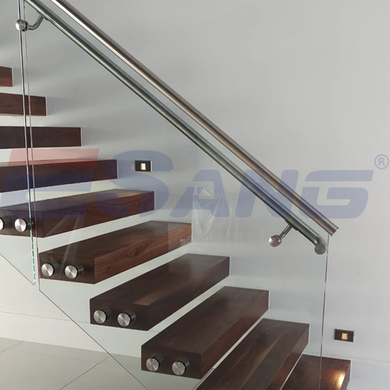

Interior/exterior glass balustrades, stair handrail supports, deck guardrails
